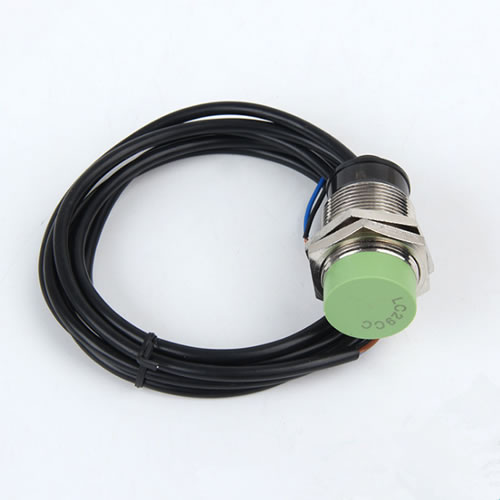

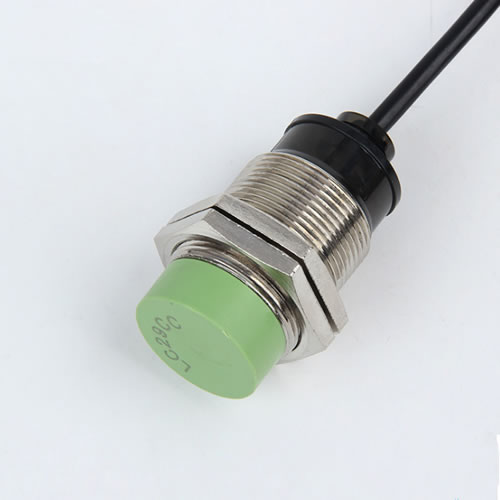

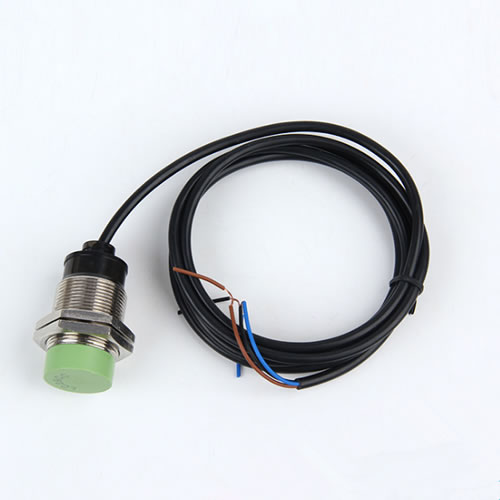

Бесконтактный переключатель PR30-15DN

External dimensions

M30x1.5x58

Installation type

Non-shielded

Detection distance

15mm±10%

Setting distance

0-13 mm

Supply voltage

12-24Vdc (6-36Vdc); 110-220Vac (36-250Vac), 50/60Hz

Rated output current

N.P Type: 300mA max; D type: 200mA max; AC Type: 400mA

Standard detected object

Mild steel (54x54x1mm)

Sensing object

Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)

Response frequency

NPN or PNP: 0.4kHz; Two wires of DC: 0.4kHz; Two wires of AC: 25Hz

Leakage current

N.P Type: 13mA max; D type: 0.8mA max; A Type: 1.7mA max

Hysteresis

10% max. of sensing distance

Protection circuit

DC: Reverse connection protection, Surge suppressor, Short-circuit protection
AC: Surge suppressor

Insulation resistance

50MΩ min (between charging part and housing)

Dielectric strength

1000Vac, 1min (between charging part and housing)

Temperature influence

±10% max. of sensing distance at 23°C within temperature range of -25°C to 60°C
±15% max. of sensing distance at 23°C within temperature range of -30°C to 65°C

Voltage influence

±10% max. of sensing distance in rated voltage range ±15%

IP Rating

IP67

Material

Case: Brass-nickel plated; Sensing surface: ABS
